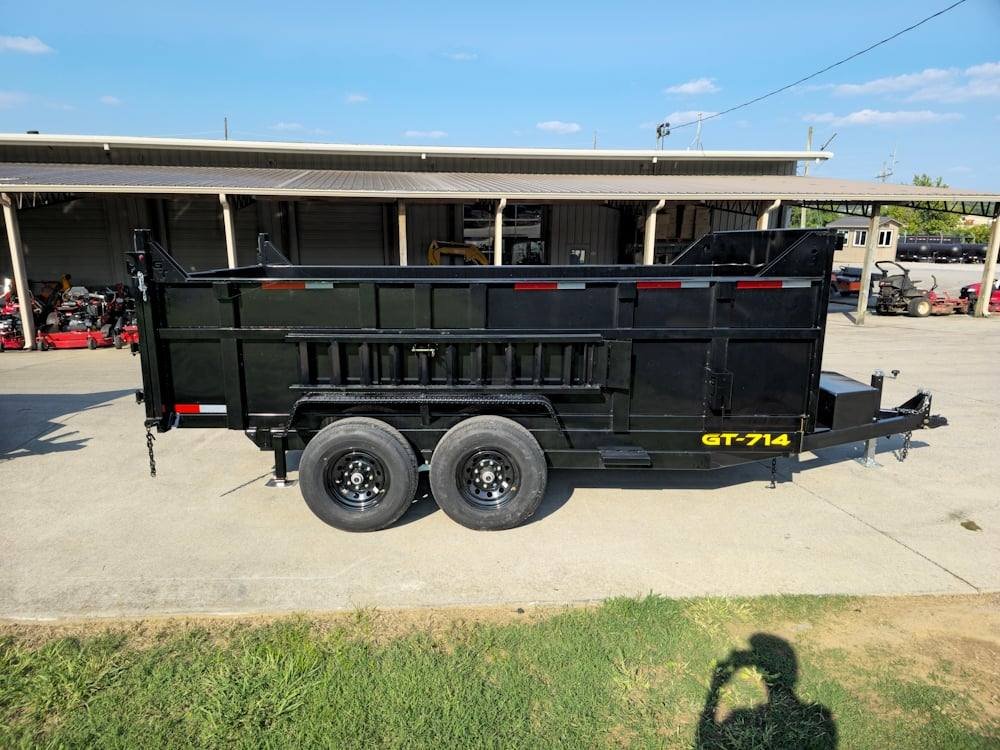

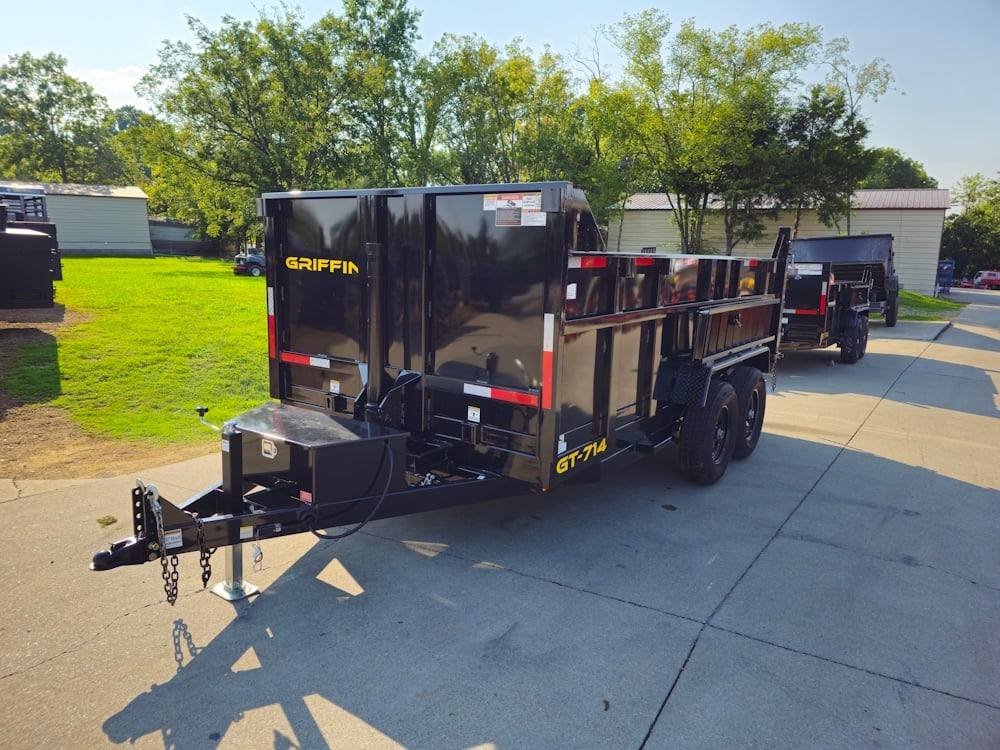

7×14 Telescopic Dump Trailer with 3ft Sides (2) 7K Axles

7×14 Telescopic Dump Trailer with 3ft Sides (2) 7K Axles

Free delivery only within 30 miles of SLE Equipment. In-store pick-up is also available for free. Call for more options: 615-641-7720

Features:

• The length of the trailer is 14 feet (168 inches), providing extended space for larger loads.
• The sidewall height is 36 inches, offering substantial depth for carrying materials.
• The width is 7 feet (82.5 inches), giving a broad loading area.
• The floor height is 29 inches, allowing for convenient loading and unloading.
• The coupler height is 18 inches, ensuring compatibility with a variety of towing vehicles.
• The cross members are made from 2″ x 3″ tubes and are spaced 16 inches on center, providing structural reinforcement.
• The wheels feature a black powder coat finish, offering durability and corrosion resistance.
• The coupler is a 2-5/16″ adjustable coupler, allowing for versatile towing setups.
• The tires are 16-inch radial, providing stability and smooth performance.

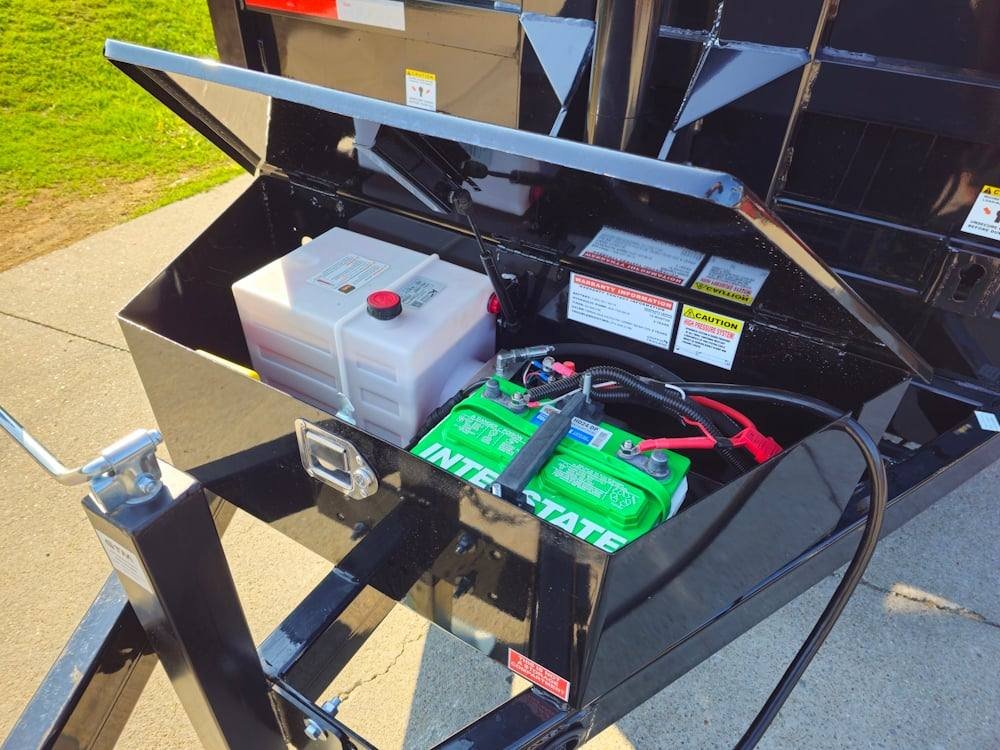

• The power unit consists of a 12v DC hydraulic pump with 3200 PSI power up and 1500 PSI power down, delivering reliable lifting power.
• The trailer includes a standard spare tire mount, keeping the spare easily accessible.
• The battery is an Interstate deep cycle marine battery, offering dependable power.
• The ramps are 80-inch C-channel fender-mounted ramps, simplifying loading and unloading tasks.
• The jack is an adjustable 7000lb top wind drop leg, ensuring easy height adjustment and stability.
• The lighting system includes amber and red LED lights, enhancing visibility and safety.
• The control box features a key lock for easy front access, ensuring security and ease of use.
• The wiring harness is a 3-piece plug-and-play system, simplifying electrical connections.
• The fenders are made from 14-gauge formed treadplate, providing protection from road debris.
• The electric plug is a 7-pin round connector, standard for trailer hookups.
• The stake pockets are made from 2″ x 4″ tubes, providing secure tie-down points for cargo.

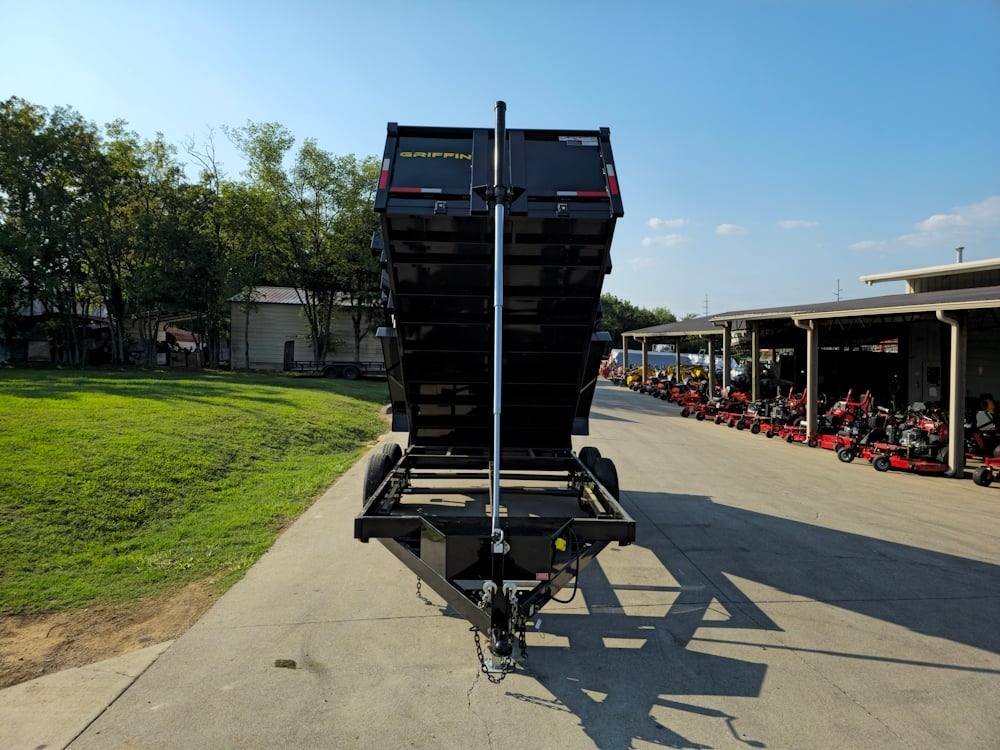

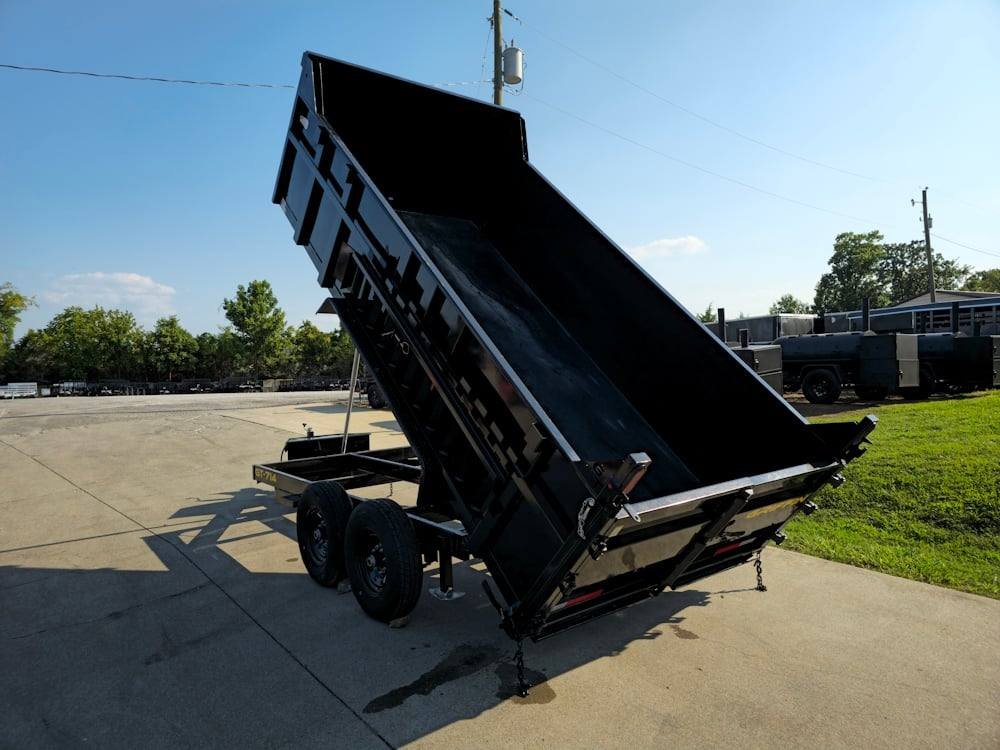

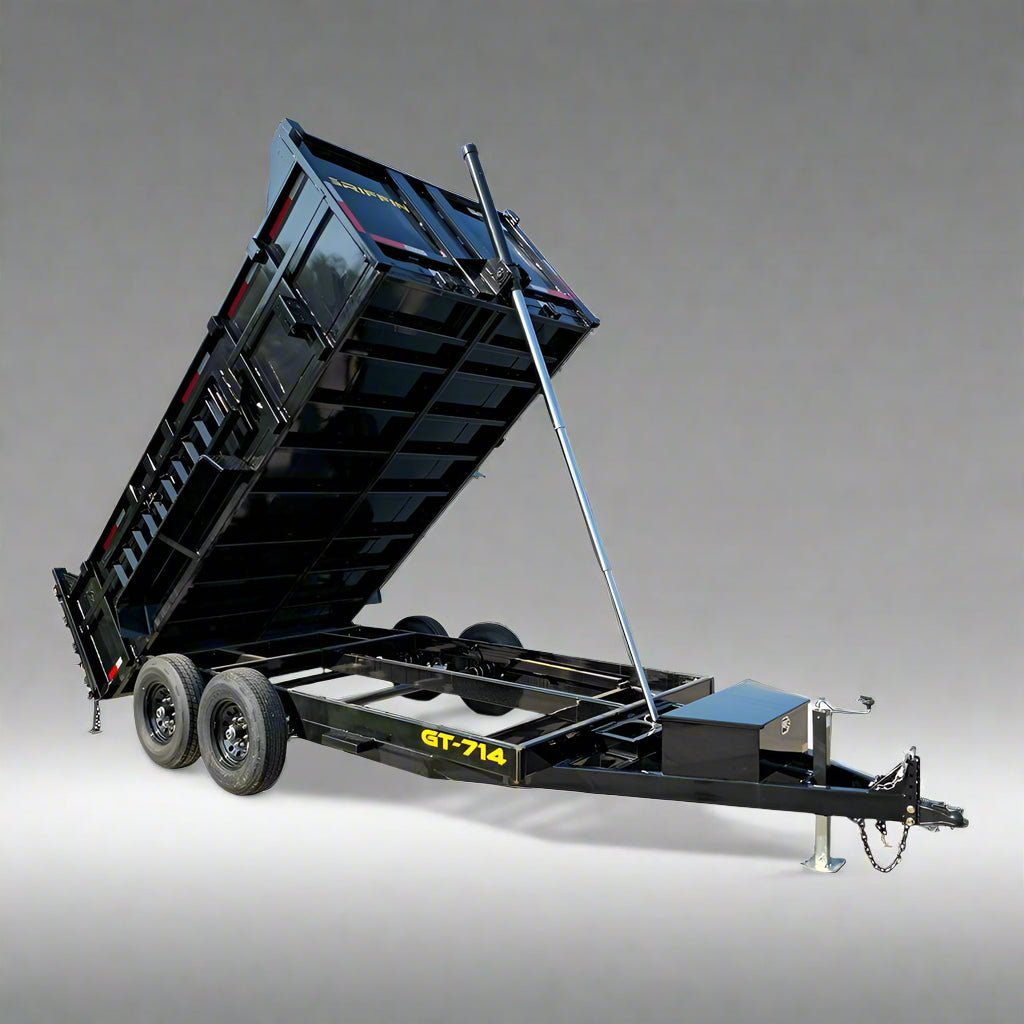

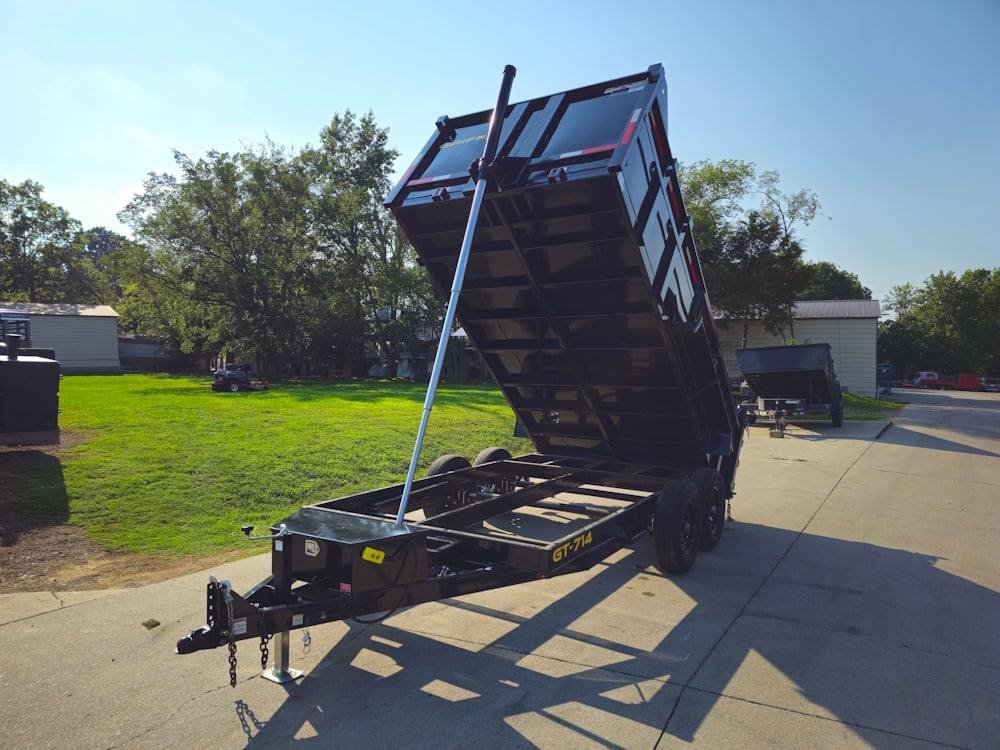

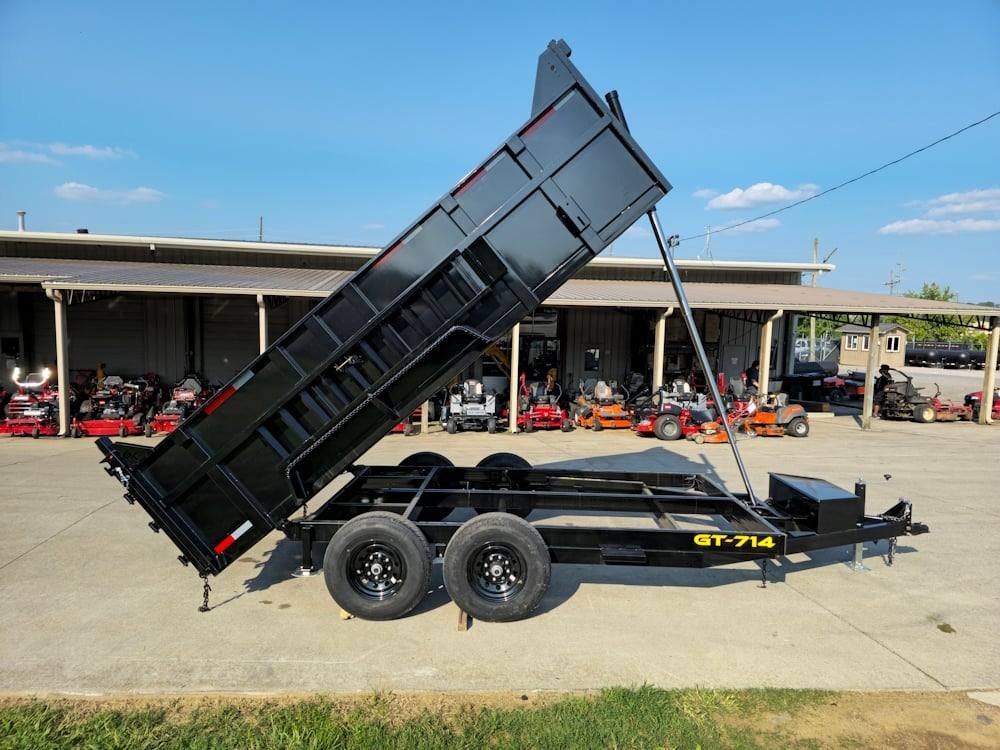

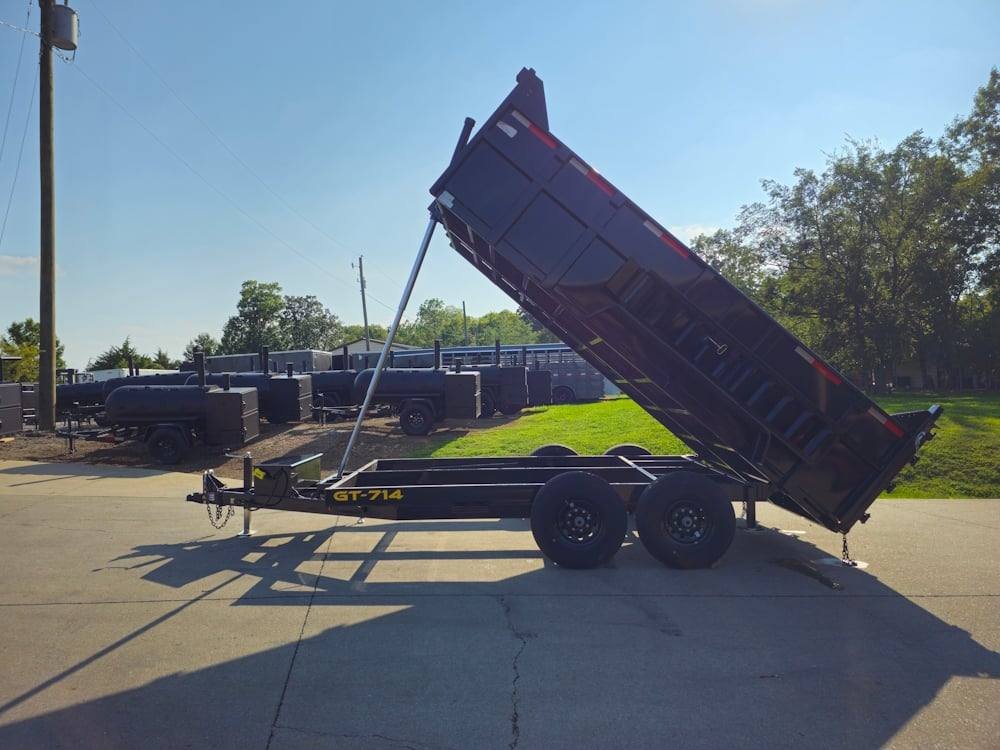

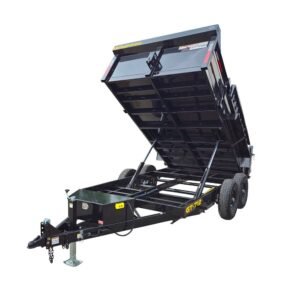

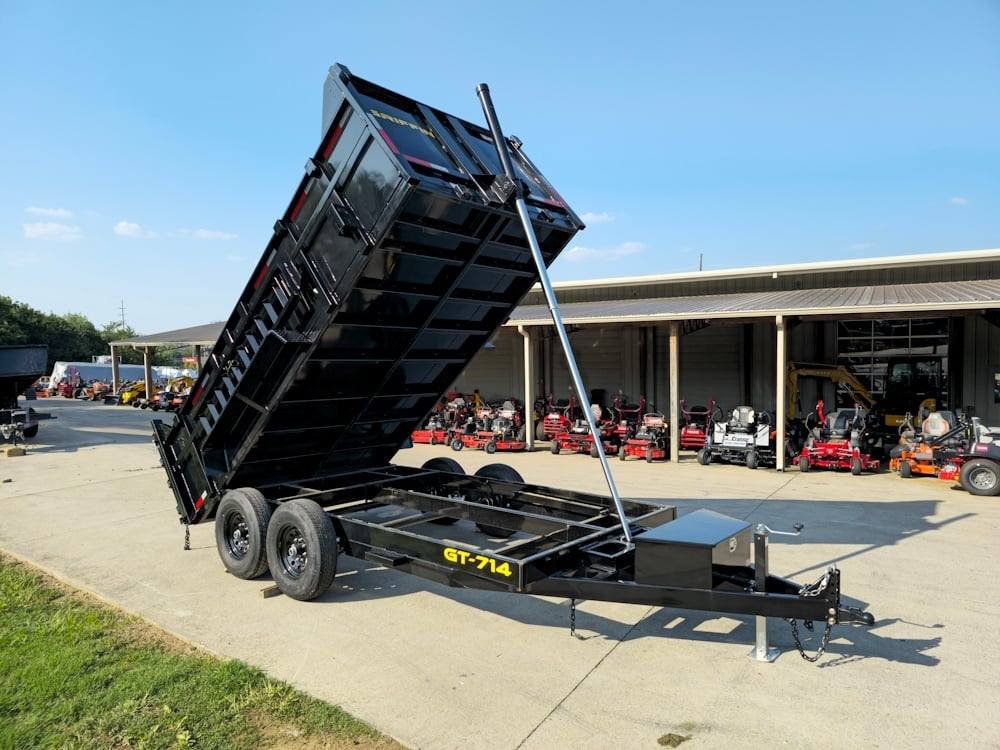

• The lift system is a 3-stage telescoping mechanism, allowing for efficient lifting capabilities.
• The gussets at the front and rear measure 2″ x 12″, allowing for wall extensions and additional strength.

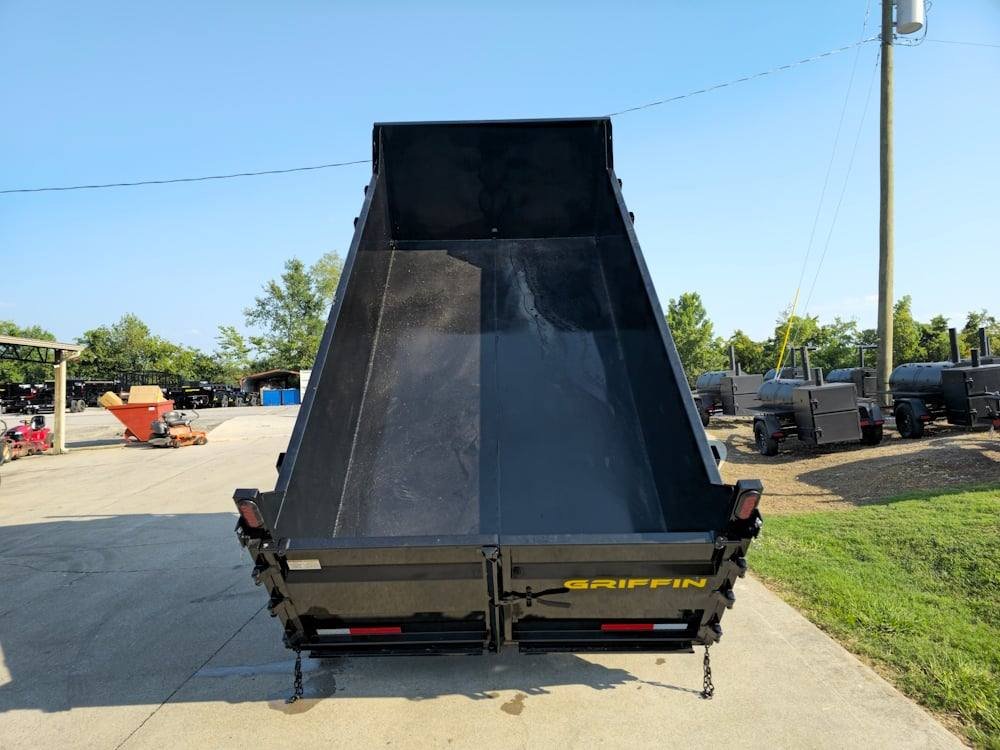

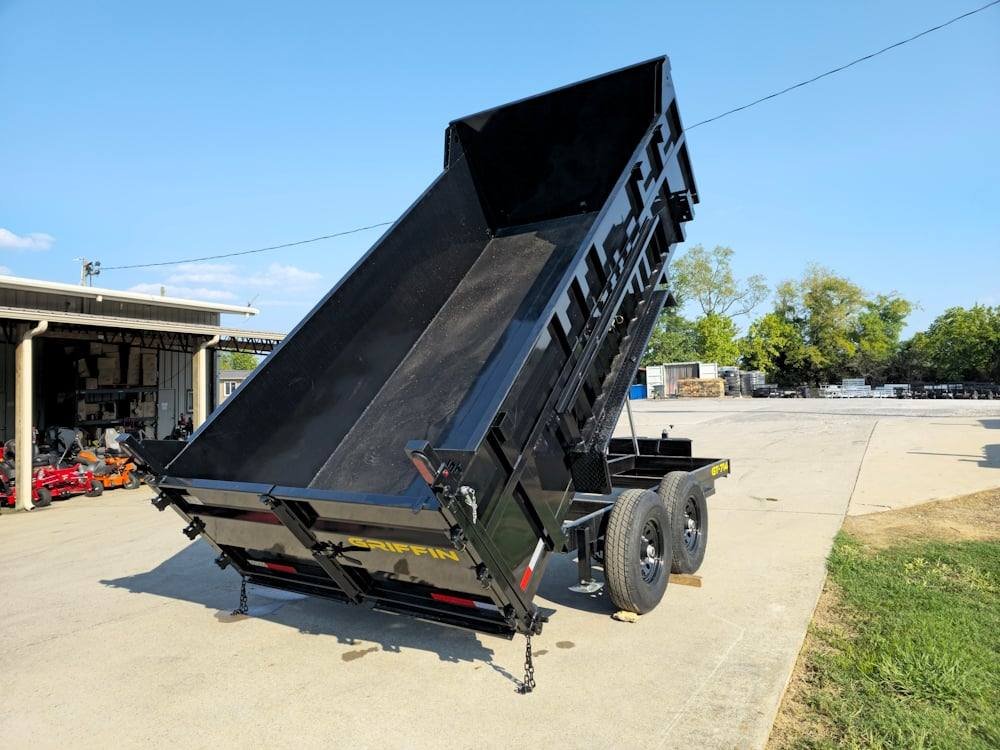

• The floor and walls are constructed from 10-gauge smooth steel, ensuring durability.
• The safety chains are two forged slip hooks measuring 5/16″ x 35″, with a 11700lb capacity, ensuring safe towing.
• The integrated tarp system has a fully covered housing, offering secure and weather-protected loads.
• The trailer includes five 5000lb D-rings, which are welded into the floor for cargo tie-downs.

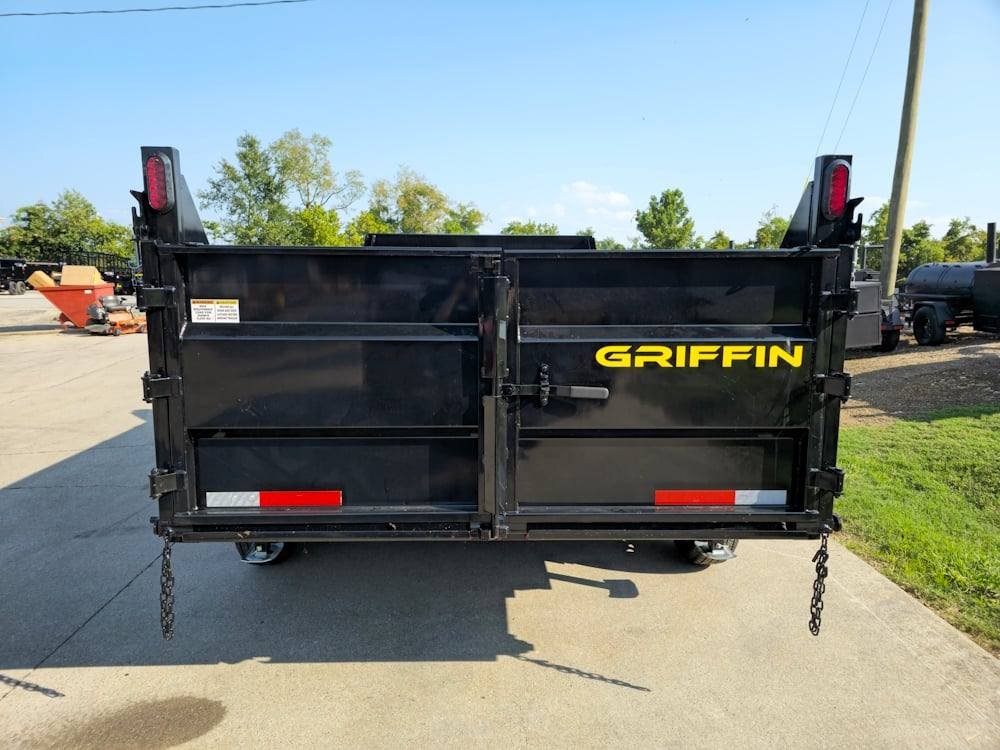

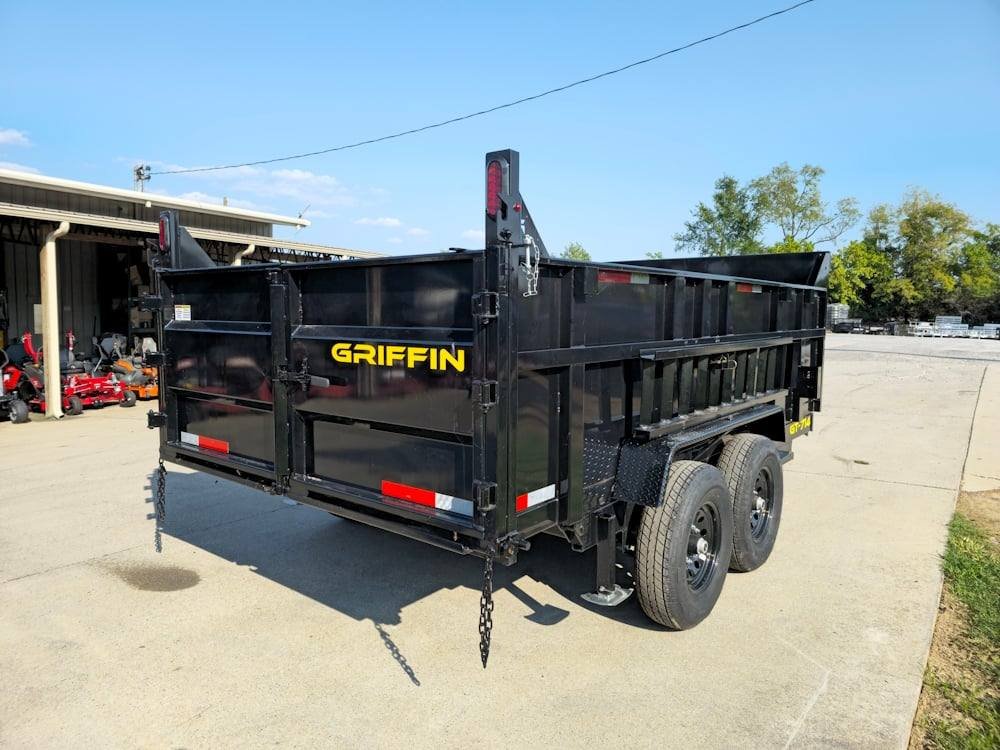

• The rear gate is a 2-way combination spreader/barn gate, providing flexible unloading options.

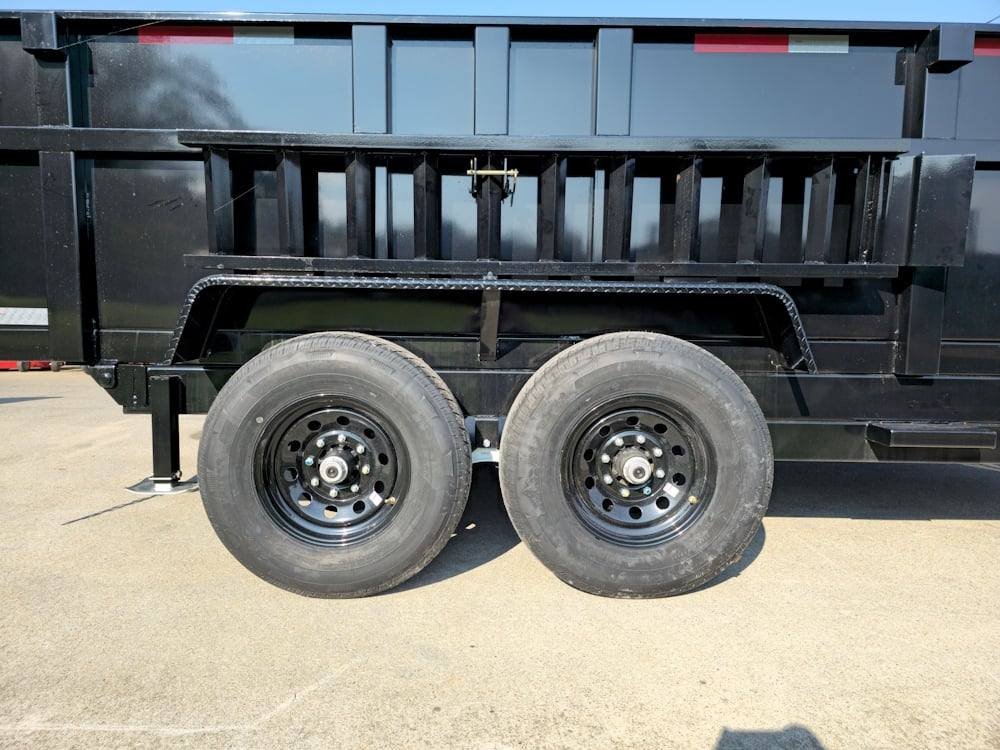

• The axles are tandem EZ lube axles with galvanized components, providing durability and low maintenance.
• The paint finish is a high gloss black powder coat, giving the trailer a protective and sleek appearance.
• The suspension is an equalized leaf spring system, ensuring a smooth ride on rough terrain.
• The style of the trailer is Low-Pro, offering a lower center of gravity for enhanced stability.
• The overall length of the trailer is 222 inches, making it ideal for larger loads.
• The GVWR (Gross Vehicle Weight Rating) is 14,000 pounds, ensuring it can handle heavy loads.
• The GAWR (Gross Axle Weight Rating) is 7000 pounds, providing a strong weight-bearing capacity on each axle.
• The curb weight of the trailer is 3904 pounds, providing a sturdy yet manageable weight.
• The tongue is constructed from 2″ x 5″ steel tubing, offering strength and durability.
• The payload capacity is 10,096 pounds, allowing for heavy material transport.
• The estimated tongue weight is 580 pounds, ensuring stability during towing.
• The dump capacity is 10,000 pounds, making it suitable for large and heavy dumping tasks.
